1. Title

   Visual Analytics for Monitoring and Preventing Illegal Fishing Activities in Oceanus

2. Motivation

Oceanus the island nation’s economy thrives on its fishing industry. The recent illegal fishing scandal involving SouthSeafood Express Corp has not only disrupted this vital sector but has also exposed significant gaps in monitoring and regulating fishing activities. By harnessing the power of visual analytics, this project aims to transform raw data into actionable insights, to unearth hidden patterns and to create a system capable of safeguarding Oceanus against future illegal activities.

3. Problem Statement

This project addresses the critical challenge of detecting and predicting illegal fishing operations in Oceanus.

The lack of accurate port records has led to a significant gap in tracking the true source and distribution of fish, making it difficult to enforce regulations and ensure sustainability.

This project aims to fill these critical gaps by developing advanced visual analytics tools that can effectively integrate and analyze diverse data sources, offering a more reliable solution to monitor and combat illegal fishing activities.”

4. Related Work

https://epjdatascience.springeropen.com/articles/10.1140/epjds/s13688-022-00331-z

The study focuses on analyzing the global liner shipping network through various network representations and methodologies. The authors address the limitations of previous approaches which used shortest paths in fully connected undirected graphs, which could misrepresent the actual connectivity and paths in the liner shipping service route data. Instead, they propose and evaluate three different representations of the network: directed co-route graph, undirected co-route graph, and the path graph.

Key innovations in the study include the development of a new method for constructing minimum-route paths from liner shipping data, which provides a more accurate reflection of route connectivity and distances than previous models. The researchers also introduce a modified betweenness centrality measure called route betweenness, which they use to analyze the network’s structure and the roles of various nodes and edges more effectively.

https://link.springer.com/chapter/10.1007/978-3-030-61852-0_10

The study investigates why certain ports are better connected than others. It explores the hierarchical nature of the network. Various measures of node connectivity are employed, all of which underscore an uneven distribution of traffic across the network.

The research delves into how cargo specialization or diversity influences the network’s structure. This aspect is analyzed through the lenses of multiplexity and assortativity, assessing whether nodes (ports) tend to diversify their activities or specialize. The analysis is conducted across two main layers—cargo and bulk—with findings indicating that larger ports and their connections tend to show greater diversification.

The final area of investigation focuses on the geographical patterns that underlie the distribution of maritime flows. The study examines how physical distance affects connectivity and the formation of subnetworks within the overall network.

5. Approach

We plan to analyze illegal fishing behavior and identify the anomalies in vessel movement and behavior through the R Shiny Web app. The application will have the following tabs:

1. Vessel Movement: A tab that can visually indicate the path of a vessel historically. This can help identify any seasonal trends or deviations of a vessel from its usual path.

2. Cargo and Vessel Matching: Matching the cargo visually to a vessel, the fish it contains, the date of delivery, and the city it was delivered to. This can be analyzed by the construction of a knowledge graph.

3. SouthSeaFoodCorp Vessels: Suspicious behavior of SouthSeaFoodCorp Express Vessels. Comparison of their vessel trajectory and fishing contents with other vessels.

4. Illegal activities after SouthSeaFoodCorp Express was caught: Behavior of the Shipping community after SouthSeaFoodCorp Express was caught.

Creation of Knowledge Graph to identify Cargo Vessel Match:

We have Cargo Transaction Records, Vessel Transponder Ping Records, Harbor Report Records and details of vessels and Locations. We can use this information to develop a possible cargo vessel mapping. Then we plan to do some data transformation to represent this visually through a Knowledge Graph.

Vessel Movement:

We can identify anomalies in vessel movement using DBSCAN Clustering. We already have coordinates of the cities and navigation points. Plotting out these can help us track vessel movements with time, identify seasonality and anomalies.

Knowledge Graph for zooming in on SouthSeaFoodCorp Vessels:

We can plot a graph to inspect activity of SouthSeaFoodCorp Vessels. This can be used to identify the fishing done, the timelines, the places of fishing and possibly isolate out the illegal activities. Once the event of SouthSeaFoodCorp being caught is identified we plan to do a temporal analysis for analyzing how other organizations changed their behavior.

Projected timeline:

The entire project will be done in 4 weeks.

Week1:

Matching cargo to the vessels

Digging deeper into SouthSeaFoodCorp Vessels

Week 2:

Plotting Vessel Movements to identify seasonality and anomalies.

Pinpointing the time when SouthSeaFoodCorp was caught and analyzing activities of other companies after that.

Week 3:

Incorporating codes into R Shiny

Identifying vessels showing behavior like SouthSeaFoodCorp vessels

Week 4:

Touch up R Shiny dashboard layouts.

Focus on completing activities remaining from Week 1, 2 & 3.

Elaborate on the kind of illegal activities the vessels are engaging in.

6. Early Prototypes/Storyboards

Diagram 1: EDA to understand the usual fishing spots and regions that are frequented by the suspected vessels

SouthSeafood Express Corp’s Activities

Diagram 2: Which locations should it not be at?

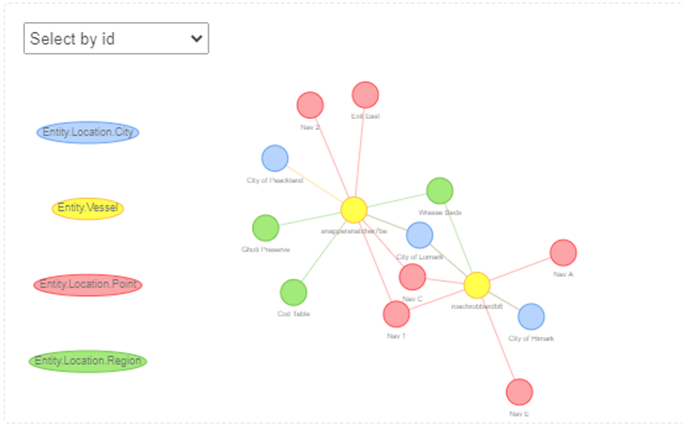

Diagram 3: Merging geospatial analysis with network analysis

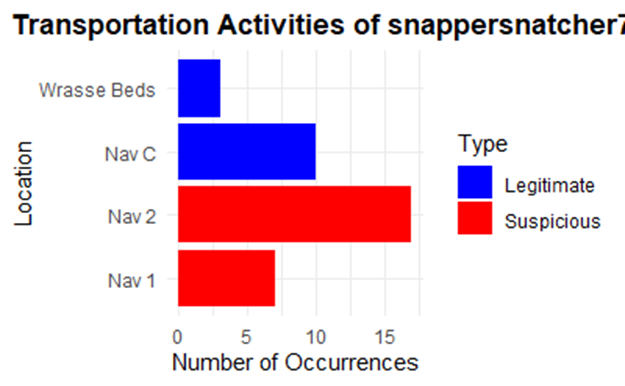

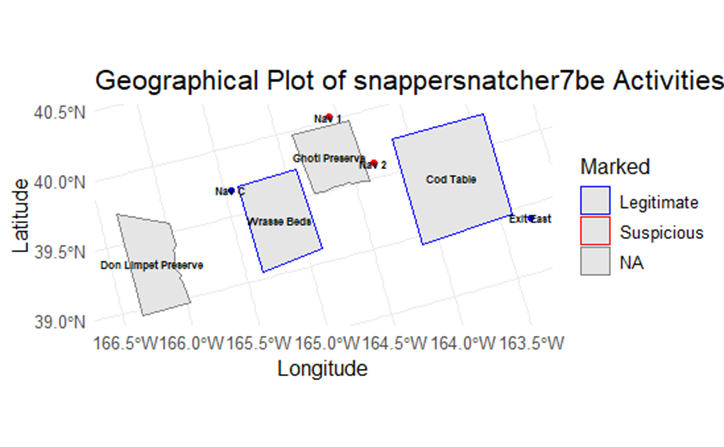

Snappersnatcher7be appears to be frequently visiting areas Nav1 and Nav2, which are located around the Ghoti Preserve. Given the type of fish it typically catches, it should not be near these locations.

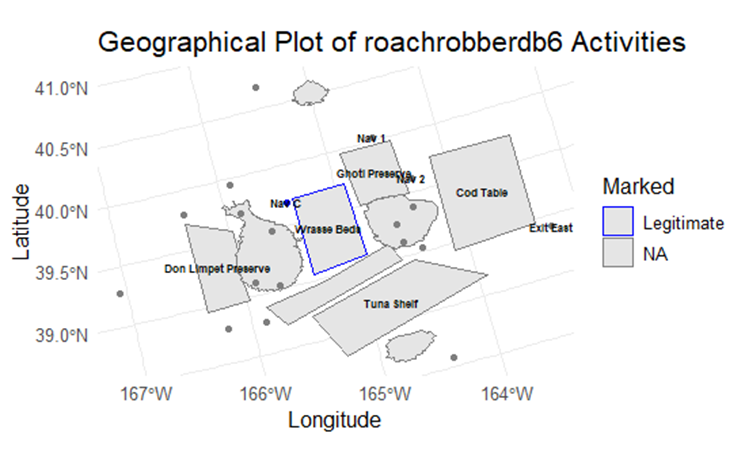

Diagram 4: The other vessel does not seem to demonstrate suspicious activities

7. Conclusion

Successful implementation of this project will deter illegal fishing practices through advanced detection capabilities, making it easier to implement regulations and promoting sustainable fishing practices.
